A good Ford Ranger canopy setup starts with a clear plan. The 2022+ Next Gen Ranger can work as a tourer, trade ute or family all-rounder, and the canopy choice affects roof load, storage access, water, power, payload and factory tech relocation.
With the right configuration, a Ranger canopy can support weekday work, long-distance touring and daily family use without wasting space or overloading the vehicle. Trig Point Ranger build, chassis-mount canopy range and Horizon tray-mount canopy pages give owners a practical starting point for planning storage, roof load, water, power and accessory choices before they enquire.
Before drawers, fridges or roof gear, choose the base. This decision sets the floor height, roof capacity, storage access and future accessory path.
| Setup | Best For | What It Gives You | Planning Note |
| Chassis-Mount Canopy | A lighter permanent setup with a low floor height | Large gullwing access, integrated body, 300kg dynamic roof load rating and standard electrical inclusions | Best when you don’t need an open tray section |
| Horizon Tray And Canopy | Trade, touring and mixed-use builds that need tray flexibility | Removable tray sides, tie-down options, track side canopy mounting and 200kg dynamic roof load rating | Best when modular storage and tray access matter |

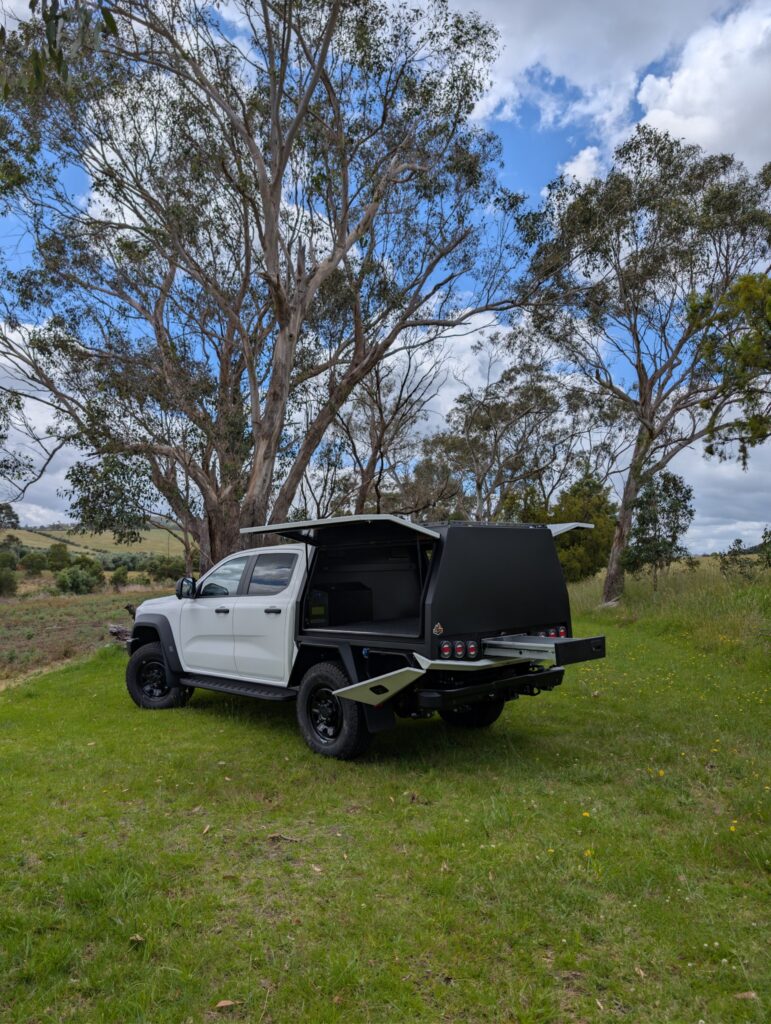

A chassis-mount canopy mounts directly to the chassis, with no tray underneath. Trig Point’s chassis-mount canopy uses lightweight aluminium and steel monocoque construction, central locking, slam-shut access, dust and water protection, standard 12V inclusions, dual-colour LED lighting, a six-outlet fuse box and a door-open buzzer.
A Ford Ranger tray and canopy setup gives you more flexibility. With a Horizon Tray, you can use tray sides, remove them in one movement through Trig Point’s patented hinge design, and build the rear around work, touring or both.
The Horizon Tray includes recessed floor tie-down tracks, internal side tie-downs, external rope rails, a removable headboard and a zinc-plated steel frame with a 4mm alloy floor. The Horizon tray-mount canopy pairs with it through Trig Point’s Track side mounting system, creating a stable fit and flush floor.
Most Ranger builds fall into three practical groups. Choose the one that matches your actual week, then spec the internals around it.
A Ranger touring setup should carry the gear you reach for every day on the road: fridge, water, 12V power, recovery gear, camp lighting and food storage.
Shaun’s Next Gen Ranger is a useful example, with a trundle drawer, 50L water tank, drawer and table, 85L Bushman upright fridge, 200Ah lithium battery, ladder and rear tyre carrier.
A Ranger canopy for tradies needs fast access and tidy storage. Open bays suit larger tools, shelving works for fixings and consumables, and drawers are better for long items, leads, levels and site gear.
Many Ranger owners need one ute for workdays and weekends away. Correctly sized drawer, shelves or open space can easily be used for work or touring. Simply unload tools and load in camping gear.
A premium Ranger canopy setup works best when the big decisions are made in the right order. Use these planning points before locking in the quote.
| Planning Area | Why It Matters | Trig Point Detail To Consider |
| Roof Load | Affects handling, and access. Although Trig Point Canopies have very high roof load ratings, it is always worth minimising roof loads where possible. | 300kg dynamic rating on chassis-mount canopies and 200kg on Horizon tray-mount canopies. |
| Tech Relocation | Next Gen Ranger cameras, sensors and radar need proper planning where fitted. | Trig Point’s Ranger demo build was developed early to refine compatibility with newer Ranger systems. |
| Payload And Weight | Water, battery, fridge, passengers, tools, fuel and roof gear add up quickly. | Start with your specific Ranger variant and count the full vehicle load. |
| Power, Water And Storage | The layout needs to support the gear you reach for most often. | Options include lithium power, fridges, drawers, shelves, kitchens, dividers and under-canopy water storage. |
Trig Point’s food-grade water tanks mount under the canopy to keep weight low and forward, with 50L, 70L and 125L options depending on the setup. Its trundle drawers are dustproof and waterproof, with sealed roller bearings, slam-shut locks, central locking, door-ajar buzzers and slope catches.
Shaun’s Ranger build gives buyers a real look at how a Ranger touring setup can handle family trips, daily use, tool power, water storage and factory-tech compatibility in one package.
It’s also a practical starting point. You can see how a trundle drawer, water tank, upright fridge, lithium battery, ladder and tyre carrier work together without overcrowding the vehicle.
The best canopy for Ford Ranger owners is the one that matches the vehicle’s actual week. For a permanent touring body with low floor height, strong roof capacity and clean gullwing access, start with a chassis-mount canopy. For tray flexibility, removable sides and a modular work-and-travel platform, speak with Trig Point about the current Horizon Tray and Horizon tray-mount canopy options available for your Ranger model.
If you are unsure of the internal set up you are after, you can always leave these off and fit them at a later date. Underbody accessories are worth planning earlier. Water tanks and trundle drawers can be fitted after the initial build, although adding them later usually takes more labour, more time and added cost than including them from the start.
A Next Gen Ranger can become a serious tourer, a clean trade vehicle or a hard-working hybrid. The setup needs to match the way you use it, with every accessory earning its place.
Explore Trig Point’s Next Gen Ranger build, compare chassis-mount canopies and Horizon tray-mount canopies, or start the conversation with Trig Point about the right Ford Ranger canopy setup for your work, travel and daily use.
What’s The Best Canopy For A Next Gen Ford Ranger?
The best canopy depends on how you use the ute. A chassis-mount canopy suits a lighter permanent setup with a low floor height. A Horizon tray and canopy setup suits owners who want tray flexibility, removable sides and modular storage.
Do I Need A Tray To Fit A Canopy On My Ranger?
No. A chassis-mount canopy fits directly to the chassis and doesn’t require a tray. If you want tray functionality, removable sides and more accessory flexibility, speak with Trig Point about the current tray and canopy options available for your Ranger model.
Can I Use My Ranger For Work And Touring With The Same Setup?
Yes. A hybrid Ranger setup works well when the internals are planned properly. Correctly sized drawer, shelves or open space can easily be used for work or touring. Simply unload tools and load in camping gear.
How Much Payload Do I Have To Work With On The Next Gen Ranger?
It varies by variant. Check your specific Ranger’s GVM and payload, then factor in passengers, fuel, canopy or tray weight, water, battery, fridge, drawers, roof gear, tools, recovery gear and towing accessories before the build is finalised. Contact Trig Point for a quote, and a full break down of canopy and accessory weights can be provided
