Trig Point
Horizon Trays

QUARTERMASTER 2024+

DUAL CAB

From $12,400.00 (inc GST)

In stock – availability varies by model. Contact us for more info.

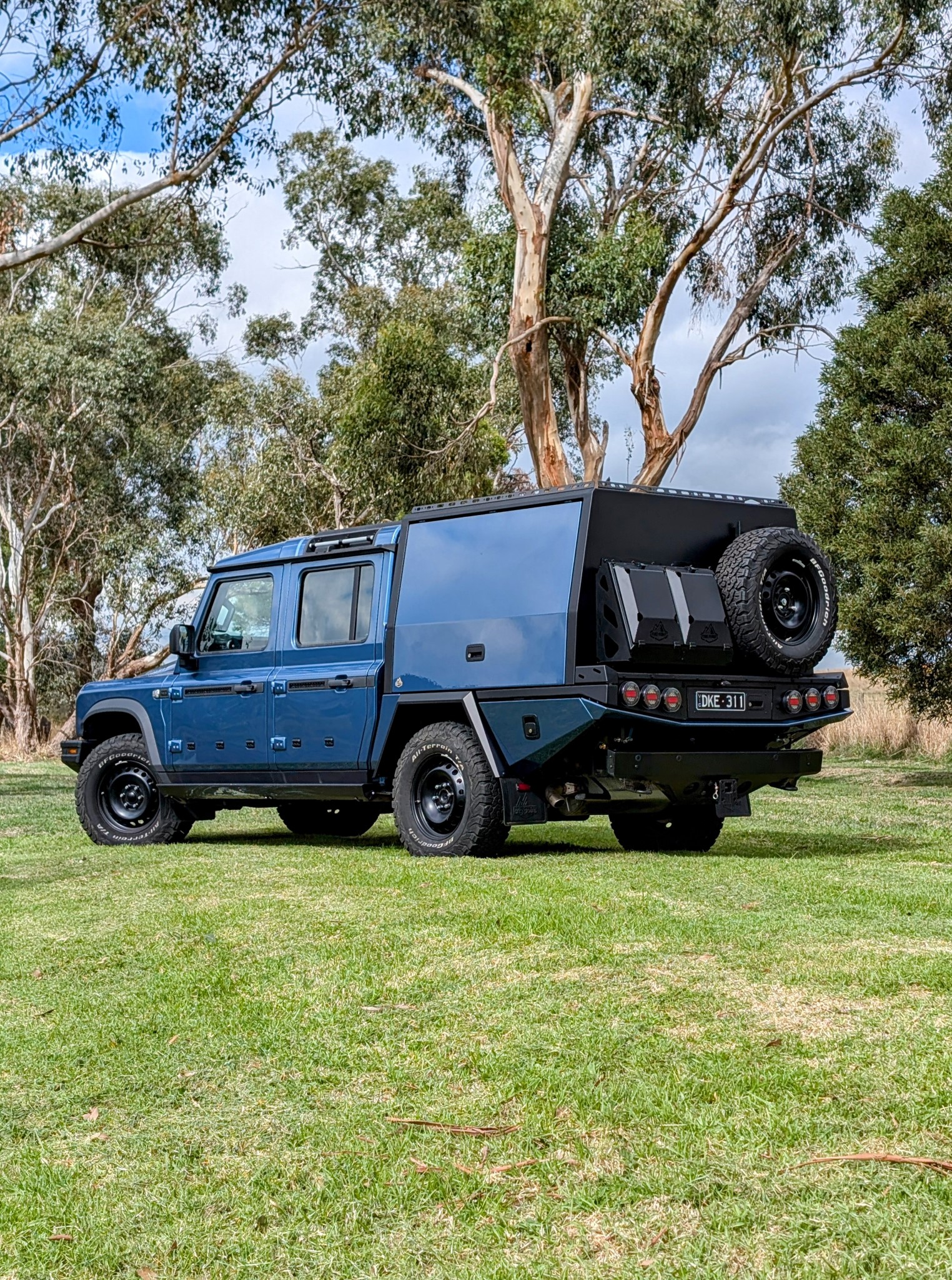

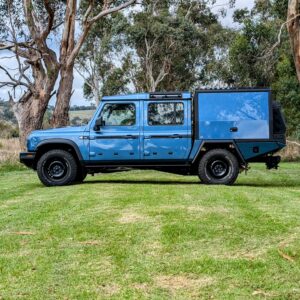

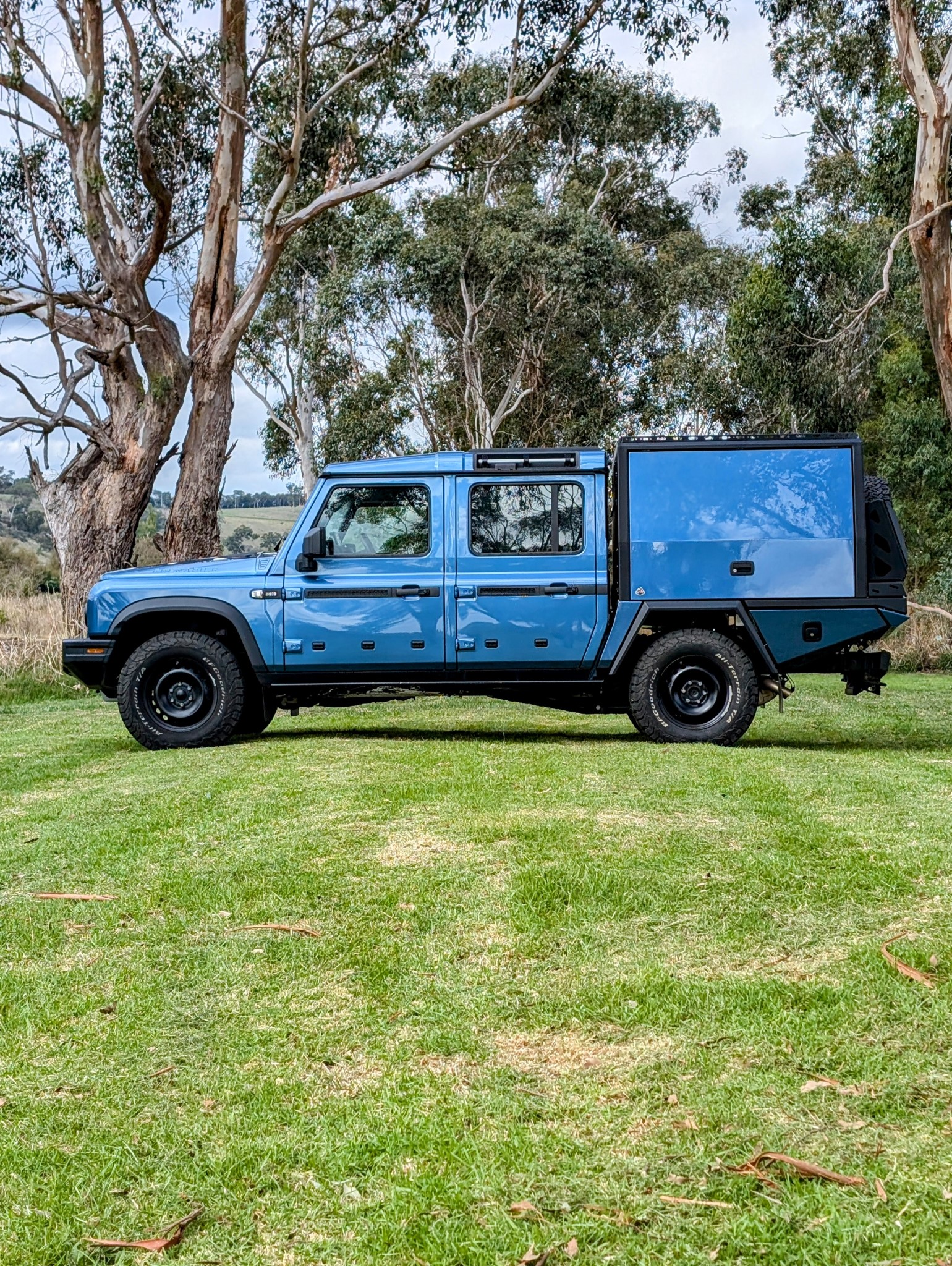

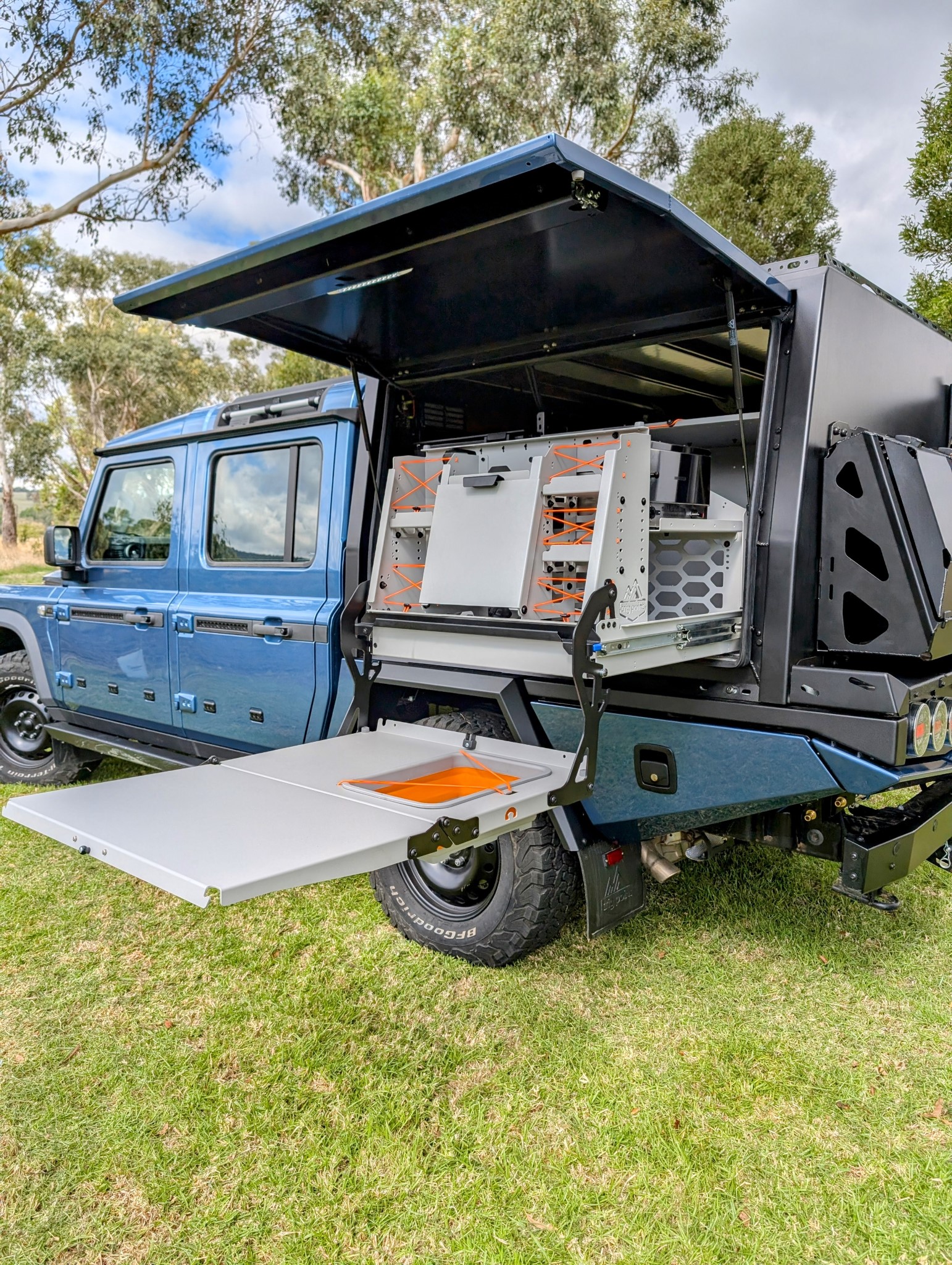

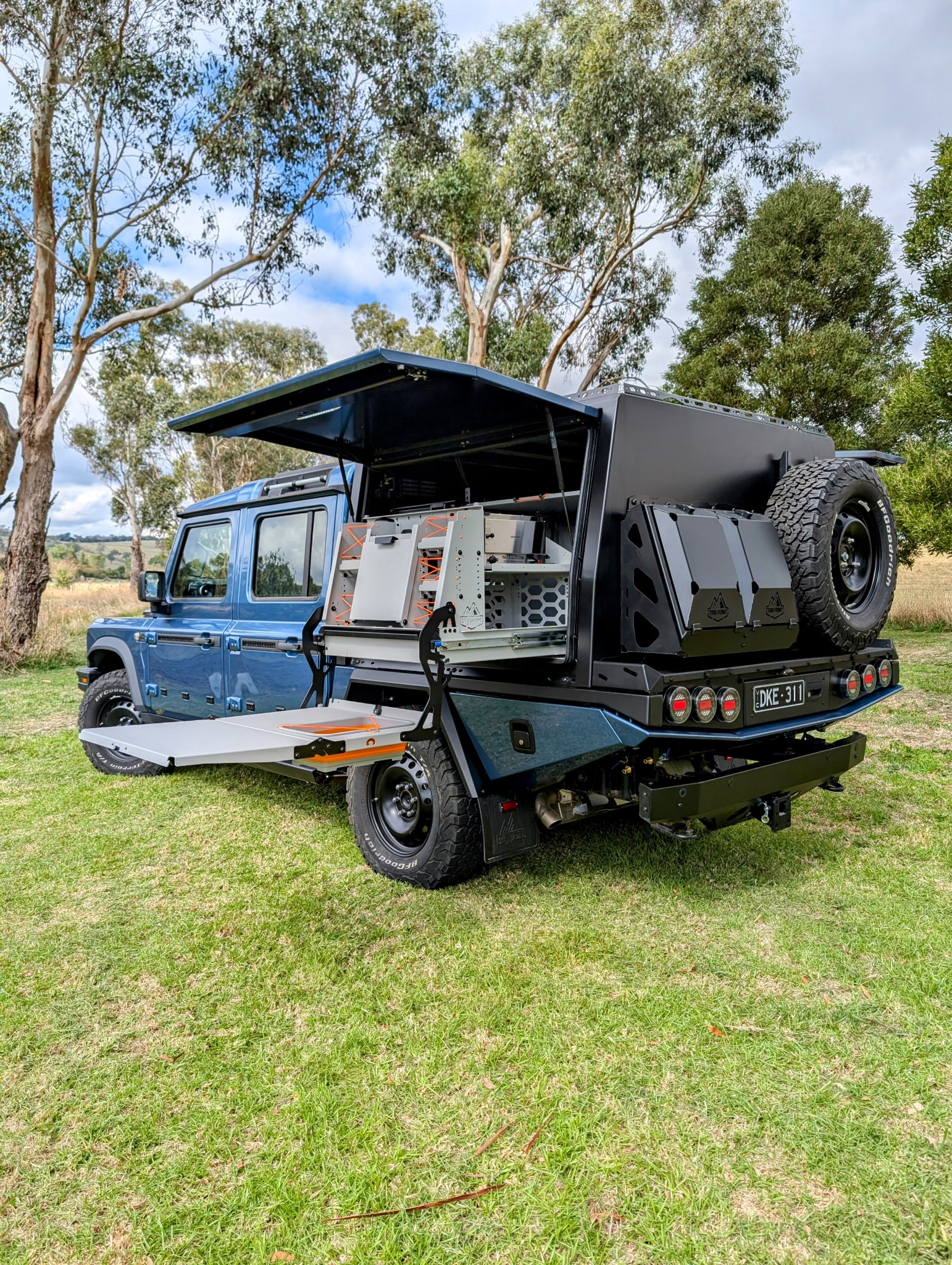

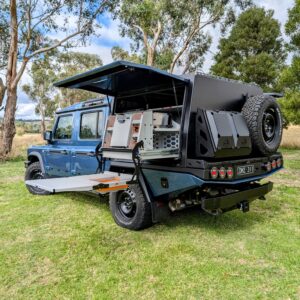

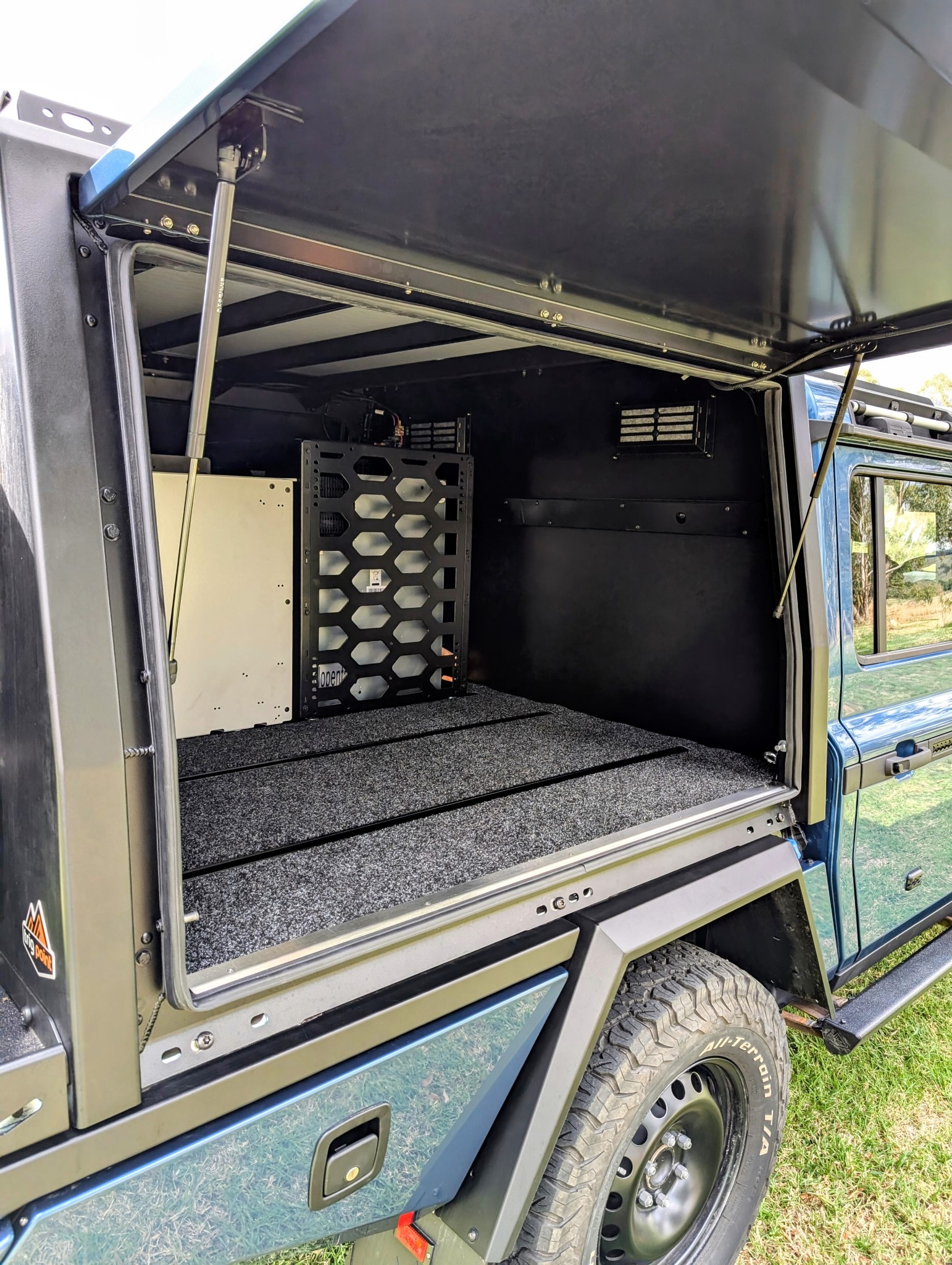

Shown with optional 1550 canopy

Made Tough

  • Aluminium and steel construction designed to achieve the perfect balance between light weight and durability
  • Zinc plated base frame ensures excellent corrosion resistance
  • Heavy duty 4mm alloy texture coated floor
  • Standard finish is a durable black powder coat with optional colour coded paint
  • Water and dustproof fully sealed toolbox doors

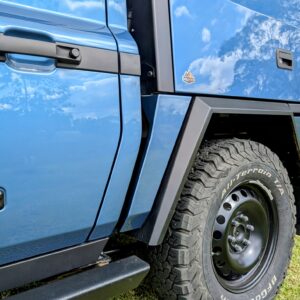

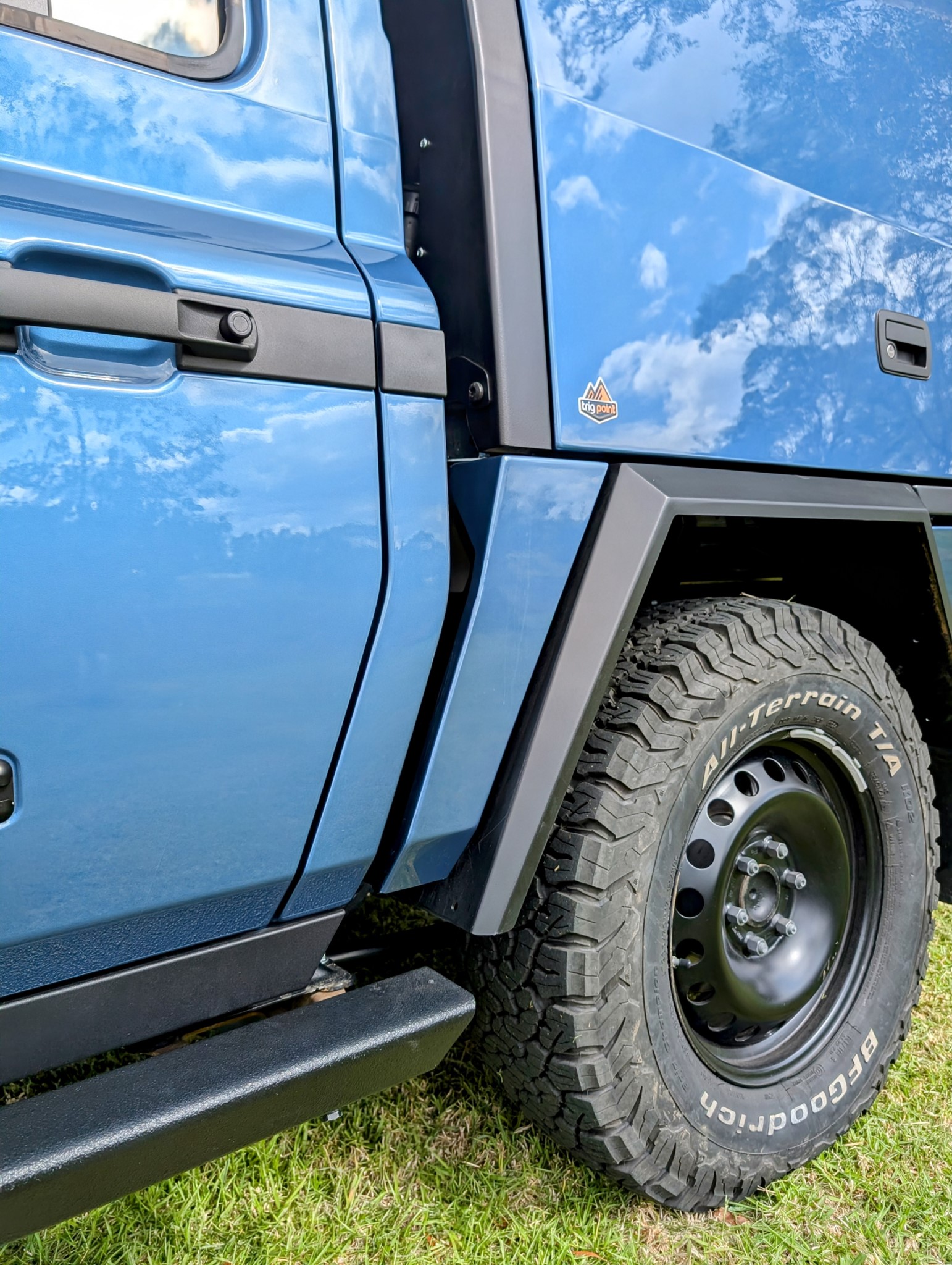

  • Wheelarches and high quality Trig Point embossed rubber mudflaps
  • Fabricated Alloy headboard for durability and protection
  • Rear bar designed to protect tray and underbody boxes

Made Smart

  • Trig Point’s patented steel hinges allow for easy toolless removal of tray sides whilst maintaining strength and durability
  • Headboard and tray designed to fit cab profile for a streamlined look and reduced wind noise
  • Two under body boxes, tapered to improve departure angle
  • Easily operated rattle free latches

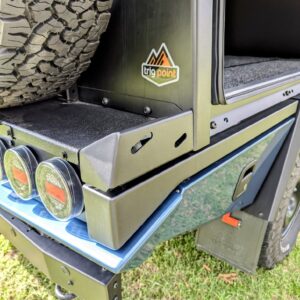

  • Recessed rear LED lights to reduce risk of damage
  • Recessed tie down tracks around the edge and across the tray floor and external integrated tie down rails to ensure load can be secured easily and safely

Made in Australia

Trig Point products are proudly manufactured at our purpose-built facility in Melbourne, Australia and are fully ADR compliant.

Standard inclusions:

  • Rear sensor relocation (if fitted)

Vehicle specific optional extras:

  • Rear camera relocation (if fitted)
  • Rear radar relocation (if fitted)

Weight:

  • 200kg weight includes tray sides, tie downs and headboard

Dimensions:

  • External: 1790mm long, 1865mm wide
  • Internal: 1680mm long, 1715mm wide, 275mm high



Will A Trig Point Horizon Tray Fit The 2024+ INEOS Grenadier Quartermaster? +

Yes. Our Horizon Tray is designed for the 2024+ INEOS Grenadier Quartermaster dual cab. It follows the cab profile and includes a removable headboard, rear bar and underbody toolboxes. Tell us your vehicle details before ordering so we can confirm fitment and any factory technology relocation needed.

What Are The Dimensions And Weight Of The INEOS Quartermaster Tray? +

The tray measures 1790mm long and 1865mm wide externally. The internal load area is 1680mm long, 1715mm wide and 275mm high. Its listed weight is 200kg, including the tray sides, tie-downs and headboard. Allow for tools, accessories, passengers and towing loads when working out your remaining payload.

Can I Add A Canopy To My INEOS Quartermaster Tray? +

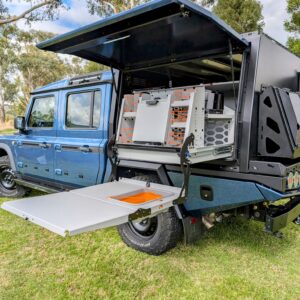

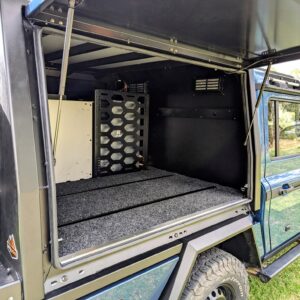

Yes. Our Quartermaster tray is shown with an optional 1550mm Horizon tray-mount canopy. Horizon tray-mount canopies are designed for Trig Point trays and aren’t compatible with other manufacturers’ trays. If you’re planning drawers, a fridge or an electrical system, it’s worth considering the full fit-out early so the canopy, storage access and weight distribution work together. Contact us to confirm the canopy and accessory options for your build.

Are The Quartermaster Tray Sides Removable And How Do I Secure Loads? +

Yes. Our patented steel hinge system lets you remove the tray sides without tools when you need open loading space. Recessed tie-down tracks run around the tray edge and across the floor, with external tie-down rails for securing equipment. This is useful when you regularly switch between work materials and camping gear.

Will The Quartermaster Tray Work With My Parking Sensors, Camera And Radar? +

Rear sensor relocation is included where sensors are fitted. Rear camera and rear radar relocation are available as optional extras, where applicable. Tell us which factory systems your Quartermaster has so we can include the appropriate work in your fit-out quote.

Please contact us if you are interested in this product. The pricing above is based on the base canopy or tray only and DOES NOT include any options, shipping or fitting.
